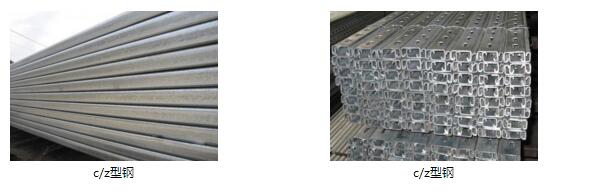

序 號 |
尺寸 | 截面積 | 重量 | 輕鋼重心 | 慣性矩 | 回轉半徑 | 截面模數 | |||||||
| mm | Cm2 | kg | Cm | Cm2 | Cm | Cm3 | ||||||||
| h b a t | F | M | Ey2 Ex1 | Jx Jy | Lx Ly | Wx Wy | ||||||||
| 01 | 100 | 50 | 20 | 3.0 | 6.495 | 5.562 | 1.848 | 5.0 | 98.560 | 22.802 | 3.895 | 1.873 | 19.712 | 7.235 |
| 02 | 120 | 50 | 20 | 3.0 | 7.095 | 5.616 | 1.705 | 6.0 | 152.109 | 24.391 | 4.630 | 1.854 | 25.351 | 7.402 |
| 03 | 140 | 50 | 20 | 3.0 | 7.695 | 6.594 | 1.583 | 7.0 | 219.848 | 25.733 | 5.345 | 1.828 | 31.406 | 7.532 |
| 04 | 160 | 60 | 20 | 3.0 | 8.895 | 7.536 | 1.846 | 8.0 | 339.955 | 41.989 | 6.182 | 2.172 | 42.494 | 10.109 |
| 05 | 180 | 60 | 20 | 3.0 | 9.49 | 8.007 | 1.739 | 9.0 | 449.695 | 43.611 | 6.881 | 2.143 | 19.966 | 10.235 |
| 06 | 180 | 70 | 20 | 3.0 | 10.095 | 8.478 | 2.106 | 9.0 | 496.693 | 63.712 | 7.014 | 2.512 | 55.188 | 13.019 |
| 07 | 200 | 60 | 20 | 3.0 | 10.095 | 8.478 | 1.644 | 10.0 | 578.425 | 45.141 | 7.569 | 2.112 | 57.842 | 10.342 |
| 08 | 200 | 70 | 20 | 3.0 | 10.095 | 8.949 | 1.966 | 10.0 | 636.643 | 65.883 | 7.715 | 2.481 | 63.644 | 13.167 |
| 09 | 250 | 80 | 20 | 3.0 | 12.38 | 9.720 | 1.940 | 12.5 | 773.485 | 68.4 | 8.753 | 2.542 | 62.879 | 18.7 |
| 10 | 250 | 80 | 20 | 3.0 | 13.50 | 10.598 | 2.154 | 12.5 | 794.95 | 69.4 | 9.544 | 2.614 | 68.721 | 19.8 |
Z 型鋼基本尺寸及主要參數
|
序 號 |
尺寸 | 截面積 | 重量 | 輕鋼重心 | 慣性矩 | 回轉半徑 | 截面模數 | |||||||
| mm | Cm2 | kg | Cm | Cm2 | Cm | Cm3 | ||||||||
| h b a t | F | M |
Ey2 Ex1 |
Jx Jy | Lx Ly | Wx Wy | ||||||||
| 01 | 100 | 50 | 20 | 2.5 | 5.261 | 4.710 | 7.375 | 5 | 79.022 | 27.608 | 3.875 | 2.291 | 15.8 | 6.31 |
| 02 | 120 | 50 | 20 | 2.5 | 5.761 | 5.103 | 4.375 | 6 | 122.091 | 27.611 | 4.604 | 2.189 | 20.349 | 6.311 |
| 03 | 140 | 50 | 20 | 2.5 | 6.511 | 5.495 | 7.857 | 7 | 188.52 | 36.364 | 5.381 | 2.363 | 26.913 | 7.549 |
| 04 | 160 | 50 | 20 | 2.5 | 7.011 | 5.888 | 4.857 | 8 | 259.388 | 36.367 | 6.028 | 2.278 | 32.417 | 7.46 |
| 05 | 180 | 60 | 20 | 2.5 | 8.011 | 6.673 | 5.857 | 9 | 383.564 | 58.785 | 6.92 | 2.709 | 42.618 | 10.006 |
| 06 | 180 | 60 | 20 | 3.0 | 9.462 | 8.007 | 5.85 | 9 | 499.734 | 67.609 | 6.882 | 2.668 | 49.97 | 11.557 |
| 07 | 200 | 60 | 20 | 2.5 | 8.510 | 7.065 | 5.857 | 10 | 492.8 | 56.768 | 7.609 | 2.628 | 49.28 | 10.006 |
| 08 | 200 | 60 | 20 | 3.0 | 10.095 | 8.478 | 5.85 | 10 | 578.468 | 67.613 | 7.57 | 2.588 | 57.847 | 11.558 |
衡水金順彩板鋼結構有限公司專業承接大型鋼結構工程、鋼結構車間、輕鋼廠房、凈化車間、彩鋼組合房屋、雨棚、鐵棚、車間、庫房、樓頂加層、鋼平臺、展覽廳、樓梯、走廊，冷庫、隔樓等。
